LED SUPERSTAR MR16 12 V

Choose your product version

2.2W 927 GU5.3

3.4W 927 GU5.3

3.4W 927 GU5.3

3.4W 927 GU5.3

3.4W 940 GU5.3

5W 927 GU5.3

5W 940 GU5.3

6.1W 927 GU5.3

6.8W 927 GU5.3

6.8W 940 GU5.3

6.1W 940 GU5.3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Superstar MR16 20 36° DIM 2.2W 927 GU5.3 GU5.3 2.2 W 12 V 25000 h 230 lm 20 W 36 ° Yes
LED Superstar MR16 20 36° DIM 3.4W 927 GU5.3 GU5.3 3.4 W 12 V 25000 h 230 lm 20 W 36 ° Yes
LED Superstar MR16 35 36° DIM 3.4W 927 GU5.3 GU5.3 3.4 W 12 V 25000 h 345 lm 35 W 36 ° Yes
LED Superstar MR16 35 36° DIM 3.4W 927 GU5.3 GU5.3 3.4 W 12 V 25000 h 345 lm 35 W 36 ° Yes
LED Superstar MR16 35 36° DIM 3.4W 940 GU5.3 GU5.3 3.4 W 12 V 25000 h 345 lm 35 W 36 ° Yes
LED Superstar MR16 35 36° DIM 5W 927 GU5.3 GU5.3 5 W 12 V 25000 h 345 lm 35 W 36 ° Yes
LED Superstar MR16 35 36° DIM 5W 940 GU5.3 GU5.3 5 W 12 V 25000 h 345 lm 35 W 36 ° Yes
LED Superstar MR16 50 36° DIM 6.1W 927 GU5.3 GU5.3 6.1 W 12 V 25000 h 621 lm 50 W 36 ° Yes
LED Superstar MR16 50 36° DIM 6.8W 927 GU5.3 GU5.3 6.8 W 12 V 25000 h 621 lm 50 W 36 ° Yes
LED Superstar MR16 50 36° DIM 6.8W 940 GU5.3 GU5.3 6.8 W 12 V 25000 h 621 lm 50 W 36 ° Yes
LED Superstar MR16 50 36° DIM 6.1W 940 GU5.3 GU5.3 6.1 W 12 V 25000 h 621 lm 50 W 36 ° Yes


SST MR16 50 36 ° 7.8 W/4000 K GU5.3

Product benefits
  • Very long lifetime of up to 25,000 h
  • Lower energy consumption than incandescent or halogen lamps
  • High color consistency thanks to narrow binning
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Ideal for economical spotlighting
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 7.8 W
Construction wattage 7.80 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 50 W
Nominal current 980 mA
Type of current AC
Inrush current 23.8 A
Max. lamp number on MCB B10 A 20
Max. lamp number on MCB B16 A 33
Power factor λ > 0.50

Photometrical data

Luminous intensity 1430 cd
Luminous flux 621 lm
Nominal useful luminous flux 90° 621 lm
Luminous efficacy 79 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤5 sdcm
Rated peak intensity 1430 cd
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 53.00 mm
Diameter 51.00 mm
Maximum diameter 51 mm
Product weight 65.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 90 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class A+ 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE, EAC

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

ILCOS DRR-7,8/840-12-GU5,3-50/36
Order reference LSMR16D5036 7,8

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU5.3
Length 53.00 mm
Height 51.00 mm
Width 51.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very long lifetime of up to 25,000 h
  • Lower energy consumption than incandescent or halogen lamps
  • High color consistency thanks to narrow binning
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Ideal for economical spotlighting
Areas of application
  • Shops
  • Hospitality
  • Museums, art galleries
  • Residential interiors
  • As a downlight for marking walkways, doors, stairs, etc.
  • Spotlighting for accents
  • Display cabinets and shop windows
  • Spotlighting heat-sensitive objects such as food, plants, etc.
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional low voltage lamps
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Mercury-free lamps
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899390119 Blister
1		 50 mm x 140 mm x 120 mm 77.00 g 0.84 dm³
4052899390126 Shipping box
10		 290 mm x 254 mm x 134 mm 960.00 g 9.87 dm³
PRODUCT DATASHEET
SST MR16 50 36 43684 W 4000K GU5.3 PDF (336.16 KB)

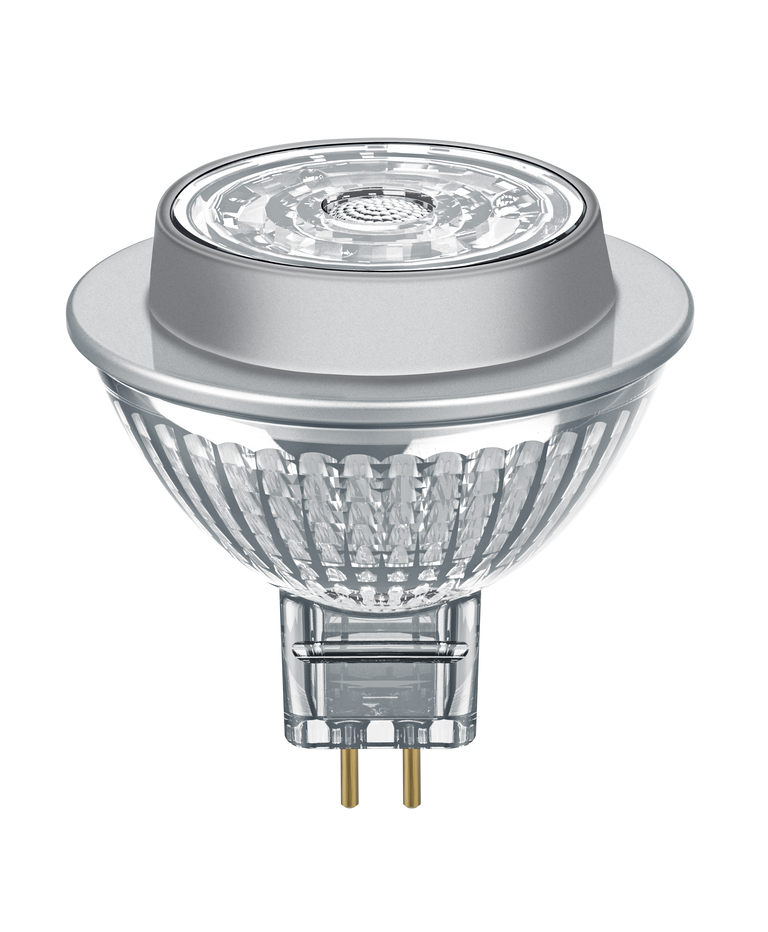

Product image: white background, diagonal
LED MR16 high lumen TIF (89.67 MB)
Product image: white background, upright
LED MR16 high lumen TIF (89.67 MB)
Product line drawing with letters
LED MR16 high lumen SVG (16.93 KB)
Product line drawing with numbers
LED MR16 high lumen SVG (18.22 KB)
Product line drawing, front, no dimensions
666418_MR16 43/50 2016 SVG (17.91 KB)
Product line drawing - technical
LED MR16 high lumen SVG (14.01 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LSMR16D5036 7-8W84012V GU5-3 BLI1 TIF (52.68 MB)
Packaging image, frontal
LED SST MR16 50 DIM ba 36 7.8W 840 GU5.3 MiCh Front TIF (9.02 MB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
OS S10x18 4000K PNG (124.64 KB)
